IQM77-IP |
|
| |
|

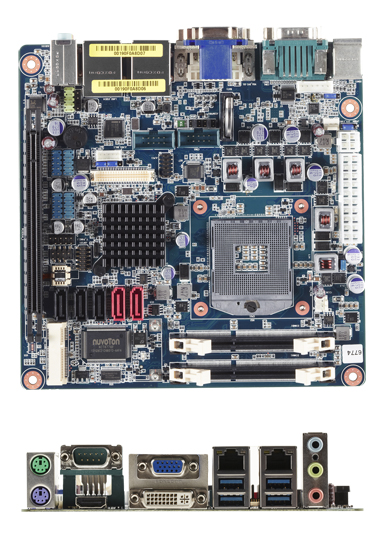

Intel® QM77 with Intel Core™ i7/ Core i5/ Core i3 Mini-ITX Motherboard |
|
|
|
| |
|
|
|
- The 3rd generation Intel Core platform, Intel QM77 Chipset, delivers up to 20% performance enhanced than the 2nd generation Intel Core platform
- Intel rPGA988 socket supports cross generations of compatibility with 22nm/ 32nm Intel Core i7/ Core i5/ Core i3 mobile processor
- Two 204-pin SODIMM sockets support up to 16GB DDR3 1600/ 1333 SDRAM
- Intel integrated graphics engine HD 4000 supports up to DirectX 11, OpenGL 3.0, OpenCL 1.1, multiple dual display functions and outstanding 3D graphics performance, more than 30% improved
- Intel 82579LM Gigabit LAN chip enables AMT 8.0 proactive security and manageability
- Supports Multiple Dual Display Functions : VGA, LVDS, HDMI, DVI
- Realtek ALC892 supports 5.1 Channel HD Audio
- 1 PCI-E x 16 Gen. 3, 1 Mini PCI-E, 1 CFast
- 4 USB 3.0, 8 USB 2.0, 3 COM, 2 SATA 3.0, 3 SATA II
- 8-bit GPIO, TPM 1.2
|
|
|
|
|
|
|
|
| |
System |
| CPU |
Intel rPGA988 socket supports 22nm/ 32nm Intel Core i7/ Core i5/ Core i3/ Pentium®/ Celeron® Mobile CPU |
| BIOS |
AMI 64Mb SPI |
| System Chipset |
Intel QM77 |
| I/O Chip |
Nuvoton NCT6776F |
| Memory Type |
Two 204-pin SODIMM support up to 16GB dual channel DDR3 1600/ 1333/ 1066 SDRAM, Non-ECC |
| Watchdog Timer |
Reset : 1 to 255 sec/min per step |
| H/W Status Monitor |
Monitoring temperatures, voltages and cooling fan status. Auto throttling control when CPU overheats. |
| Expansion |
1 PCI-E x 16 Gen. 3, 1 Mini PCI-E, 1 CFast |
| TPM |
Onboard TPM 1.2 by Infineon SLB9635 |
| Power Status |
S1, S3, S4, S5 |
| Wake up on LAN or Ring |
LAN (WOL, PXE) |
| Smart Fan Control |
Yes |
I/O |
| MIO |
2 COM RS-232 with Power (5V/ 12V, internal), 1 COM RS-232 (Rear), 2 SATA 3.0, 3 SATA II, 1 HDMI, 1 DVI, 1 VGA, 1 LVDS, 1 LVDS Backlight, 2 LAN, 1 CFast Card, 1 PS/2 Keyboard, 1 PS/2 Mouse |
| USB 3.0 |
4 (Rear) |
| USB 2.0 |
8 (Internal) |
| GPIO |
8-bit General Purpose I/O for 4-bit DI and 4-bit DO |
Display |
| Chipset |
- Intel HD 4000/ 2500 (22nm CPU); - Intel HD 3000/ 2000 (32nm CPU) |
| Display Memory |
Shared Memory, up to 256MB |
| Dual Display |
VGA + LVDS, VGA + HDMI, VGA + DVI, LVDS + HDMI, LVDS + DVI, HDMI + DVI |
| VGA |
Onboard, supports max resolution 2048 x 1536 (@75Hz) |
| LVDS |
Onboard 24-bit LVDS, supports max resolution 1920 x 1200 |
| LVDS Backlight |
Yes, through internal LVDS Backlight Connector |
| HDMI |
Onboard HDMI 1.3, supports max resolution 1920 x 1200 |
| DVI |
Onboard DVI-D, supports max resolution 1920 x 1200 |
Audio |
| Audio Codec |
Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface |
Line-in, Line-out, Mic-in, S/PDIF Out, Front Audio Header |
Ethernet |
| LAN 1 |
Intel 82579LM GbE LAN supports iAMT 8.0 |
| LAN 2 |
Intel 82583V Gigabit LAN |
Back Panel I/O Port |
| PS/2 Keyboard |
1 |
| PS/2 Mouse |
1 |
| COM RS-232 Port |
1 |
| VGA Port |
1 |
| HDMI Port |
1 |
| DVI-D Port |
1 |
| USB 3.0 Port |
4 |
| LAN RJ45 Port |
2 |
| Audio I/O (3 Jacks) |
1 |
Internal I/O Connector |
| USB 2.0 Connector |
4 |
| COM RS-232 Connector |
2 |
| SATA 3.0 Connector |
2 |
| SATA II Connector |
3 |
| Front Audio Connector |
1 |
| Front Panel Connector |
1 |
| CPU Fan Connector |
1 |
| System Fan Connector |
1 |
| Mini PCI-E Connector |
1 |
| S/PDIF Out Connector |
1 |
| CFast Connector |
1 |
| Keyboard/ Mouse Connector |
1 |
| LVDS Connector |
1 |
| LVDS Backlight Power Connector |
1 |
| GPIO Connector |
1 |
Power |
| Power Requirement |
+12V (22A), +5V (20A), +3.3V (12A), -12V (0.1A), 5VSB (2A) |
| Power Type |
ATX (supports AT Mode) |
| Power Connector |
1 20-pin ATX Power Connector, 1 4-pin ATX 12V Power Connector |
Mechanical & Environmental |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Operating Humidity |
0% to 90% relative humidity, non-condensing |
| Size (L x W) |
6.69" x 6.69" (170 mm x 170 mm) |
| Weight |
0.77 lbs (0.35 Kg) |
|
|
|
|
|
|
