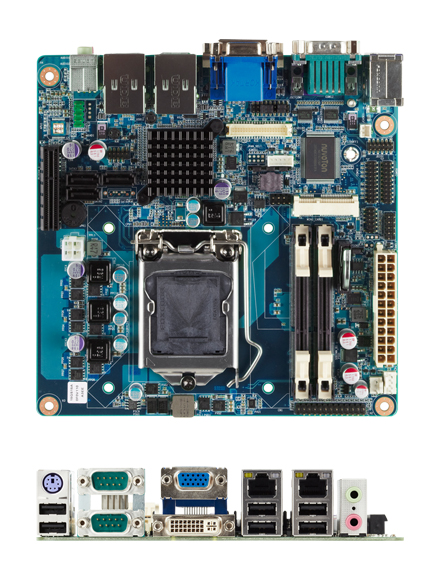

IH61-IL |
|
| |
|
Intel® H61 with Intel Xeon™ E3-1275/ E3-1225 Mini-ITX Motherboard |
|
|
|
| |
|
|
|
- Intel H61 Express Chipset supports up to Intel Xeon E3 series CPU running with scalable cost-optimzed performance
- Intel LGA1155 socket supports cross generations of compatibility with 22nm/ 32nm Intel Core™ i7/ Core i5/ Core i3 desktop processor
- Two 204-pin SODIMM sockets support up to 16GB DDR3 1333/ 1066 SDRAM
- Intel HD P3000/ 4000 graphics engine supports up to DirectX 11, Shader Model 4.1 and OpenGL 3.0
- Supports Multiple Dual Display Functions : VGA, LVDS, DVI
- Realtek AL892 supports 5.1 Channel HD Audio
- 1 PCI-E x 4, 1 Mini PCI-E
- 8 USB 2.0, 6 COM , 3 SATA II
- 8-bit GPIO
|
|
|
|
|
|
|
|
| |
System |
| CPU |
Intel LGA1155 socket supports 22nm/ 32nm Intel Xeon E3/ Core i7/ Core i5/ Core i3/ Pentium®/ Celeron® desktop CPU |
| BIOS |
AMI 32Mb SPI ROM |
| System Chipset |
Intel H61 |
| I/O Chip |
Nuvoton NCT6776F |
| Memory Type |
Two 204-pin SODIMM support up to 16GB dual channel DDR3 1333/1066 SDRAM, Non-ECC |
| Watchdog Timer |
Reset : 1 to 255 sec/min per step |
| H/W Status Monitor |
Monitoring temperatures, voltages and cooling fan status. Auto throttling control when CPU overheats. |
| Expansion |
1 PCI-E x 4, 1 Mini PCI-E |
| Power Status |
S1, S3, S4, S5 |
| Wake up on LAN or Ring |
LAN (WOL, PXE) |
| Smart Fan Control |
Yes |
I/O |
| MIO |
4 COM RS-232 (Internal), 2 COM RS-232 (Rear), 3 SATA II, 1 DVI, 1 VGA, 1 LVDS, 1 LVDS Backlight, 2 LAN, 1 PS/2 Keyboard/ Mouse |
| USB |
8 USB 2.0 (6 Rear, 2 Internal) |
| GPIO |
8-bit General Purpose I/O for 4-bit DI and 4-bit DO |
Display |
| Chipset |
- Intel HD P3000 (Xeon E3 Series CPU), - Intel HD 4000/ 2500 (22nm CPU), - Intel HD 3000/ 2000 (32nm CPU) |
| Video Memory |
Shared Memory, up to 256MB |
| Dual Display |
VGA + LVDS, VGA + DVI, LVDS + DVI |
| VGA |
Onboard, supports max resolution 2048 x 1536 (@75Hz) |
| LVDS |
Onboard 24-bit LVDS, supports max resolution 1920 x 1200 |
| LVDS Backlight |
Yes, through internal LVDS Backlight Connector |
| DVI |
Onboard DVI-D, supports max resolution 1920 x 1200 |
Audio |
| Audio Codec |
Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface |
Line-out, Mic-in, Front Audio Header |
Ethernet |
| LAN 1 |
Realtek RTL8111E Gigabit LAN |
| LAN 2 |
Realtek RTL8111E Gigabit LAN |
Back Panel I/O Port |
| PS/2 Keyboard/ Mouse Port |
1 |
| COM RS-232 Port |
2 |
| VGA Port |
1 |
| DVI-D Port |
1 |
| USB 2.0 Port |
6 |
| Audio I/O (2 Jacks) |
1 |
Internal I/O Connector |
| COM RS-232 Connector |
4 |
| USB Connector |
2 |
| SATA Connector |
3 |
| Front Audio Connector |
1 |
| Front Panel Connector |
1 |
| CPU Fan Connector |
1 |
| System Fan Connector |
1 |
| Mini PCI-E Connector |
1 |
| LPT Connector |
1 |
| LVDS Connector |
1 |
| LVDS Backlight Power Connector |
1 |
| PCI-E x 4 Connector |
1 |
Power |
| Power Requirement |
+12V (21A), +5V (10A), +3.3V (4.5A), -12V (0.3A), 5VSB (2A) |
| Power Type |
ATX (supports AT Mode) |
| Power Connector |
1 24-pin ATX Power Connector, 1 4-pin ATX 12V Power Connector |
Mechanical & Environmental |
| Operating Humidity |
0% to 90% relative humidity, non-condensing |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Size (L x W) |
6.69" x 6.69" (170 mm x 170 mm) |
| Weight |
0.88 lbs (0.4 Kg) |
|
|
|
|
|
|
