IQ87-AL |
|
| |
|
Intel® Q87 with Intel Core™ i7/ Core i5/ Core i3 ATX Motherboard |
|
|
|
| |
|
|
|
- The 4th generation Intel Core™ platform, Intel Q87 Chipset, supports up to 13% performance enhanced than the 3rd generation Intel Core platform
- Intel LGA1150 socket supports 22nm Intel Core i7/ Core i5/ Core i3 desktop processor
- Four 240-pin DIMM sockets support up to 32GB DDR3 1600/ 1333/ 1066 SDRAM
- Advanced Intel integrated graphics engine supports DX 11.1, OpenGL 4.x, OpenCL 1.2 and outstanding 3D graphics performnace, up to 32% improved
- Intel I210AT Gigabit LAN chip enables AMT 9.0 proactive security and manageability functions
- Versatile display I/O supports multiple display functions : VGA, HDMI, DVI-D, DisplayPort
- Realtek ALC892 supports 5.1 Channel HD Audio
- 1 PCI-E x 16 Gen. 3, 1 PCI-E x 4, 1 PCI-E x 1, 4 PCI
- 5 USB 3.0, 8 USB 2.0, 6 COM, 4 SATA 3.0, 1 M-SATA
- 8-bit GPIO
|
|
|
|
|
|
|
|
| |
System |
| CPU |
Intel LGA1150 socket supports 22nm Intel Core i7/ Core i5/ Core i3/ Pentium®/ Celeron® desktop CPU |
| BIOS |
AMI 64Mb SPI |
| System Chipset |
Intel Q87 |
| I/O Chip |
Nuvoton NCT6776F |
| Memory Type |
Four 240-pin DIMM support up to 32GB dual channel DDR3 1600/ 1333/1066 SDRAM, Non-ECC |
| Watchdog Timer |
Reset : 1 to 255 sec/min per step |
| H/W Status Monitor |
Monitoring temperatures, voltages and cooling fan status. Auto throttling control when CPU overheats. |
| Expansion |
1 PCI-E x 16 Gen. 3, 1 PCI-E x 4, 1 PCI-E x 1, 4 PCI |
| TPM |
Intel Integrated TPM 1.2 |
| Power Status |
S1, S3, S4, S5 |
| Wake up on LAN or Ring |
LAN (PXE) |
| Smart Fan Control |
Yes |
I/O |
| MIO |
5 COM RS-232 (Internal), 1 RS-232/ 422/ 485(Internal), 4 SATA 3.0, 1 M-SATA, 1 LPT,1 HDMI, 1 DVI, 1 VGA, 1 DisplayPort, 2 LAN, 1 PS/2 Keyboard, 1 PS/2 Mouse |
| USB |
6 USB 3.0 (1 Internal, 5 Rear), 8 USB 2.0 (Internal) |
| GPIO |
8-bit General Purpose I/O for 4-bit DI and 4-bit DO |
Display |
| Chipset |
Intel HD4600 |
| Display Memory |
Shared Memory, up to 512MB |
| VGA |
Onboard, supports max resolution 1920 x 1200 (@60Hz) |
| HDMI |
Onboard, supports max resolution 4096 x 2304 (@24Hz) |
| DVI |
Onboard DVI-D, supports max resolution 1920 x 1200 (@60Hz) |
| DisplayPort |
Onboard, supports max resulution 3200 x 2000 (@60Hz) |
Audio |
| Audio Codec |
Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface |
Line-in, Line-out, Mic-in, S/PDIF Out, Front Audio Header |
Ethernet |
| LAN 1 |
Intel I210AT GbE LAN supports iAMT 9.0 |
| LAN 2 |
Intel I217 GbE LAN |
Back Panel I/O Port |
| PS/2 Keyboard |
1 |
| PS/2 Mouse |
1 |
| VGA Port |
1 |
| HDMI Port |
1 |
| DisplayPort |
1 |
| DVI-D Port |
1 |
| USB 3.0 Port |
4 |
| LAN RJ45 Port |
2 |
| Audio I/O (3 Jacks) |
1 |
Internal I/O Connector |
| USB 2.0 Connector |
4 |
| USB 3.0 Connector |
1 |
| COM RS-232 Connector |
5 |
| COM RS-232/ 422/ 485 Coneector |
1 |
| SATA Connector |
4 |
| CPU Fan Connector |
1 |
| System Fan Connector |
1 |
| Chassis Fan Connector |
1 |
| TPM Connector |
1 |
| mSATA Connector |
1 |
| Front Audio Connector |
1 |
| Front Panel Connector |
1 |
| S/PDIF Out Connector |
1 |
| GPIO Connector |
1 |
| LPT Connector |
1 |
| Keyboard/ Mouse Connector |
1 |
Power |
| Power Requirement |
+12V (22A), +5V (20A), +3.3V (12A), -12V (0.1A), 5VSB (2A) |
| Power Type |
ATX (supports AT Mode) |
| Power Connector |
1 24-pin ATX Power Connector, 1 4-pin ATX 12V Power Connector |
Mechanical & Environmental |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Operating Humidity |
0% to 90% relative humidity, non-condensing |
| Size (L x W) |
12" x 9.6" (304.8 mm x 243.84 mm) |
| Weight |
1.41 lbs (0.65 Kg) |
|
|
|
|
|
|
/IQ87-AL-alls20140529162219.jpg)

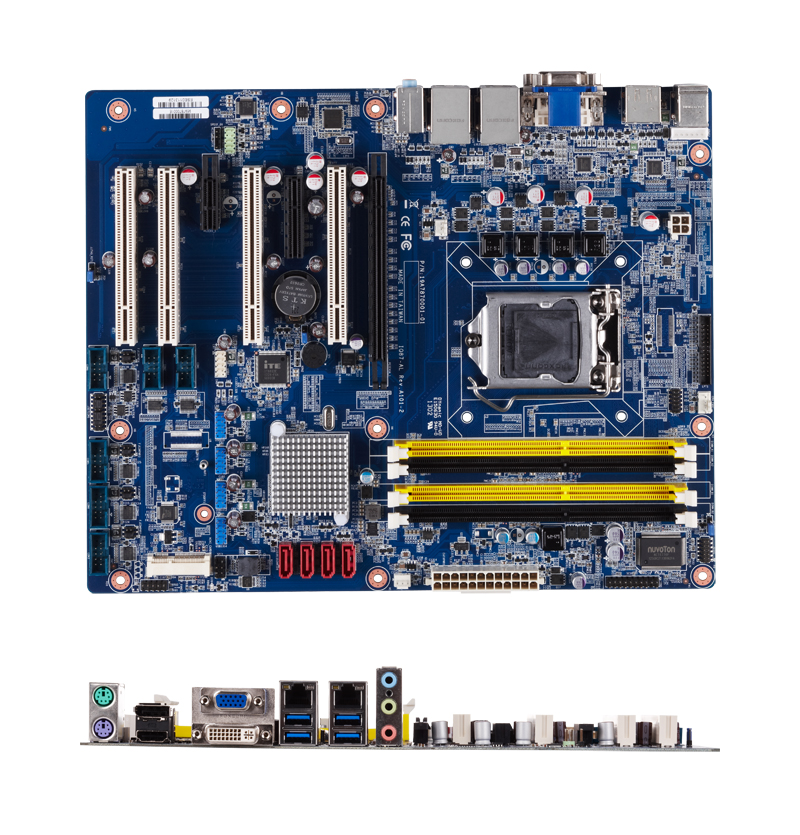

/IQ87-AL-alls20140529162224.jpg)
