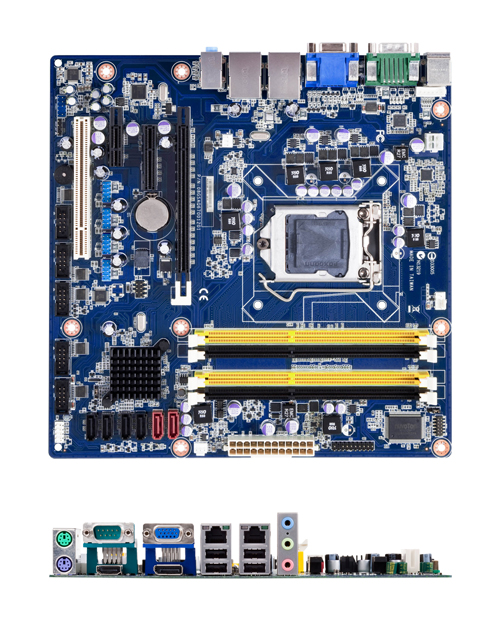

IQ67-ML |
|
| |
|
Intel® Q67 with Intel Core™ i7/ Core i5/ Core i3 Micro-ATX Motherboard |
|
|
|
| |
|
|
|
- Intel LGA1155 socket supports 22nm/ 32nm Intel Xeon® E3/ Core i7/ Core i5/ Core i3 desktop CPU
- Intel Q67 Chipset
- Intel HD P3000/ 4000 graphics engine supports up to DirectX 11, Shader Model 4.1, OpenGL 3.0 and multiple dual display functions
- Four DIMM support up to 16GB dual channel 1066/ 1333MHz DDR3 SDRAM
- Realtek ALC892 supports 5.1 Channel HD Audio
- Intel 82579LM (LAN 1) and Intel 82583V (LAN 2) Gigabit LAN
- 1 PCI-E x 16, 1 PCI-E x 4, 1 PCI-E x 1, 1 PCI
- 2 SATA 3.0 and 4 SATA II support AHCI, RAID 0, 1 and TPM 1.2 (optional)
- 6 COM, 12 USB 2.0
- 8-bit GPIO
|
|
|
|
|
|
|
|
| |
System |
| CPU |
Intel LGA1155 socket supports 22nm/ 32nm Intel Xeon E3/ Core i7/ Core i5/ Core i3/ Pentium®/ Celeron® desktop CPU |
| BIOS |
AMI 16Mb SPI |
| System Chipset |
Intel Q67 |
| I/O Chip |
Nuvoton NCT6776F |
| Memory Type |
Fuor 240-pin DIMM slots support up to 16GB dual channel DDR3 1066/ 1333 SDRAM |
| Watchdog Timer |
Reset : 1 to 255 sec/min per step |
| H/W Status Monitor |
Monitoring temperatures, voltages and cooling fan status. Auto throttling control when CPU overheats. |
| Expansion |
1 PCI-E x 16, 1 PCI-E x 4, 1 PCI-E x 1, 1 PCI |
| Power Status |
S1, S3, S4, S5 |
| Wake up on LAN or Ring |
LAN (WOL) and Ring (WO) |
| Smart Fan Control |
Yes |
I/O |
| MIO |
6 COM RS-232, 2 SATA 3.0, 4 SATA II, 1 HDMI, 1 DisplayPort, 1 VGA, 2 LAN, 1 PS/2 Keyboard, 1 PS/2 Mouse |
| USB |
12 USB 2.0 (4 Rear, 8 Internal) |
| GPIO |
8-bit General Purpose I/O for 4-bit DI and 4-bit DO |
Display |
| Chipset |
- Intel HD P3000 (Xeon E3 Series CPU), - Intel HD 4000/ 2500 (22nm CPU), - Intel HD 3000/ 2000 (32nm CPU) |
| Display Memory |
Shared Memory, up to 1.7GB |
| Dual Display |
VGA + DisplayPort, VGA + HDMI, HDMI + DisplayPort |
| VGA |
Onboard, supports max resolution 2048 x 1536 (@60Hz) |
| HDMI |
Onboard HDMI 1.3, supports max resolution 1920 x 1080 |
| DisplayPort |
Onboard, supports max resolution 1920 x 1080 |
Audio |
| Audio Codec |
Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface |
Line-in, Line-out, Mic-in, S/PDIF Out, Front Audio Header |
Ethernet |
| LAN 1 |
Intel 82579LM Gigabit LAN |
| LAN 2 |
Intel 82583V Gigabit LAN |
Back Panel I/O Port |
| VGA Port |
1 |
| HDMI Port |
1 |
| DisplayPort |
1 |
| COM RS-232 Port |
1 |
| USB 2.0 Port |
4 |
| LAN RJ45 Port |
2 |
| Audio I/O (3 Jacks) |
1 |
Internal I/O Connector |
| USB 2.0 Connector |
4 |
| COM RS-232 Connector |
5 |
| SATA Connector |
6 |
| Front Audio Connector |
1 |
| CPU Fan Connector |
1 |
| System Fan Connector |
1 |
| Chassis Fan Connector |
1 |
| GPIO Connector |
1 |
| TPM Connector |
1 |
Power |
| Power Requirement |
+12V (5.51A), +5V (1.466A), +3.3V (2.09A), 5VSB (0.6A) |
| Power Type |
ATX (supports AT Mode) |
| Power Connector |
1 24-pin ATX Power Connector, 1 4-pin ATX 12V Power Connector |
Mechanical & Environmental |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Operating Humidity |
0% to 90% relative humidity, non-condensing |
| Size (L x W) |
9.6" x 9.6" (243.84 mm x 243.84 mm) |
| Weight |
1.35 lbs (0.6 Kg) |
|
|
|
|
|
|
